Data Science

• A much-hyped phrase, but effectively is about the application of statistics and machine learning to real-world data, and developing formalized tools instead of one-off analyses. Combines diverse fields to solve problems.

Data Science

What’s a data scientist?

Data Science

Us geographic folks also rely on knowledge from multiple domains. We know that spatial is more than just an x and y column in a table, and how to get value out of this data.

Data Science Languages

• Python (SciPy stack, Jupyter, scikit-learn, …)
• C++ (Tensorflow, Shark, MLC++)
• Java (Spark MLlib, Weka)
• R (ML task view)
• Many workflows require combining components from multiple environments.

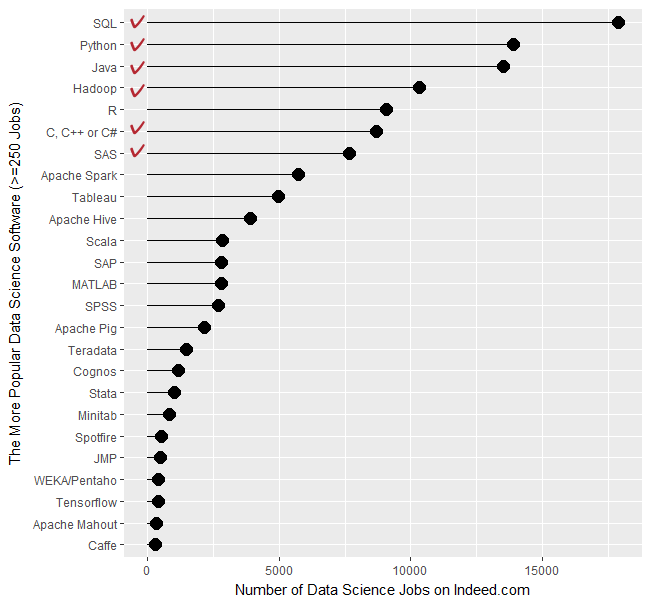

Data Science Jobs

R4Stats, DS job report

.

• Industry standard for package management in the data science context, built by Continuum Analtyics

• Started with Python, but as shown in the R segment of the plenary, it can be used to support R, and hybrid workflows which connect multiple languages.

• Technology partner of Esri, have a talk tomorrow: Exploring Continuum Analytics’ Open-Source Offerings
  • Thurs 10:30AM, Mesquite G-H

Esri and ?

• Integration via ArcGIS–R bridge
• Joined R Consortium and R Foundation
• More to come — GIS has historically been more coupled with Python

Why ?

• Powerful core data structures and operations
  • Data frames, functional programming
• Unparalleled breadth of statistical routines
  • The de facto language of Statisticians
• CRAN: 6400 packages for solving problems
• Versatile and powerful plotting

R Data Types

Data types you’re used to seeing…

Numeric - Integer - Character - Logical - timestamp

Data Frames

• Treats tabular (and multi-dimensional) data as a labeled, indexed series of observations. Sounds simple, but is a game changer over typical software which is just doing 2D layout (e.g. Excel)

Data Types

# Create a data frame out of an existing source
df.from.csv <- read.csv(
    "data/growth.csv",
    header=TRUE)

Data Types

# Create a data frame from scratch
quarter <- c(2, 3, 1)
person <- c("Goodchild",
            "Tobler",
            "Krige")

met.quota <- c(TRUE, FALSE, TRUE)
df <- data.frame(person,
                 met.quota,
                 quarter)

Data Types

R> df
     person met.quota quarter
1 Goodchild      TRUE       2
2    Tobler     FALSE       3
3     Krige      TRUE       1

sp Types

Entity + Attribute model

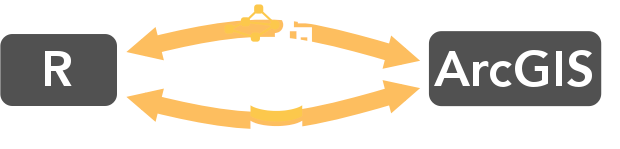

R — ArcGIS Bridge

.

R — ArcGIS Bridge

• ArcGIS developers can create tools and toolboxes that integrate ArcGIS and R
• ArcGIS users can access R code through geoprocessing scripts
• R users can access organizations GIS’ data, managed in traditional GIS ways

https://r-arcgis.github.io

R–ArcGIS Bridge

Store your data in ArcGIS, access it quickly in R, return R objects back to ArcGIS native data types (e.g. geodatabase feature classes).

Knows how to convert spatial data to sp objects.

Package Documentation

Demo: Getting Started

ArcGIS vs R Data Types

ArcGIS vs R Data Types

Access ArcGIS from R

Start by loading the library, and initializing connection to ArcGIS:

# load the ArcGIS-R bridge library
library(arcgisbinding)
# initialize the connection to ArcGIS. Only needed when running directly from R.
arc.check_product()

Access ArcGIS from R

First, select a data source (can be a feature class, a layer, or a table):

input.fc <- arc.open('data.gdb/features')

Then, filter the data to the set you want to work with (creates in-memory data frame):

filtered.df <- arc.select(input.fc,
                          fields=c('fid', 'mean'),
                          where_clause="mean < 100")

This creates an ArcGIS data frame – looks like a data frame, but retains references back to the geometry data.

Access ArcGIS from R

Now, if we want to do analysis in R with this spatial data, we need it to be represented as sp objects. arc.data2sp does the conversion for us:

df.as.sp <- arc.data2sp(filtered.df)

arc.sp2data inverts this process, taking sp objects and generating ArcGIS compatible data frames.

Access ArcGIS from R

Finished with our work in R, want to get the data back to ArcGIS. Write our results back to a new feature class, with arc.write:

arc.write('data.gdb/new_features', results.df)

Access ArcGIS from R

WKT to proj.4 conversion:

arc.fromP4ToWkt, arc.fromWktToP4

Interacting directly with geometries:

arc.shapeinfo, arc.shape2sp

Geoprocessing session specific:

arc.progress_pos, arc.progress_label, arc.env (read only)

Hadley Stack

• Hadley Wickham
• Developer at R Studio, Professor at Rice University

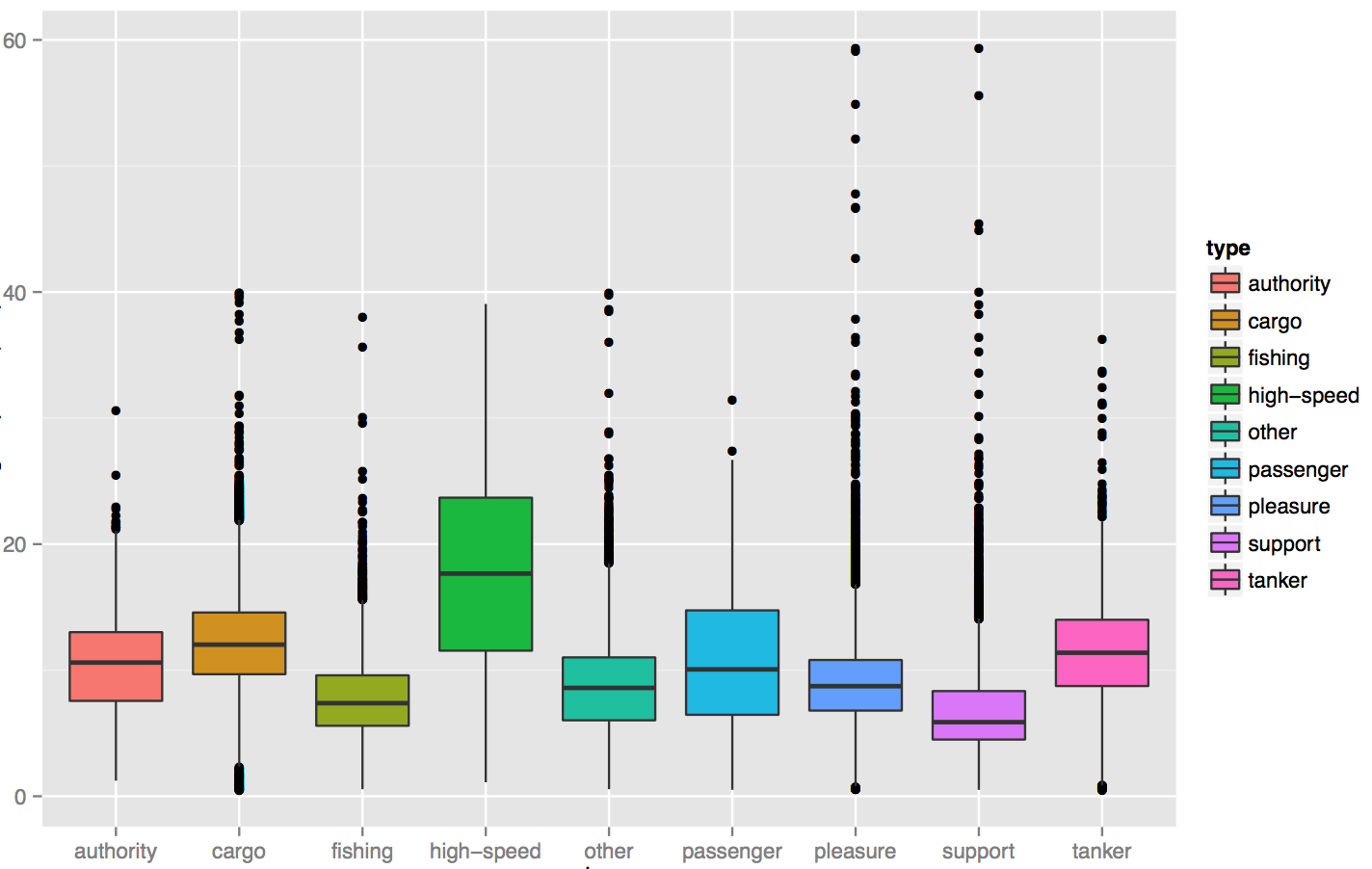

• ggplot2, scales, dplyr, devtools, many others
• New, in collaboration with Wes McKinney: feather

Statistical Formulas

fit.results <- lm(pollution ~ elevation + rainfall + ppm.nox + urban.density)

• Domain specific language for statistics
• Similar properties in other parts of the language
• caret for model specification consistency

Literate Programming

• packages: RMarkdown, Roxygen2
• Jupyter notebooks

Development Environments

•
• née IPython
• R Tools for Visual Studio

dplyr Package

Batting %.%
  group_by(playerID) %.%
  summarise(total = sum(G)) %.%
  arrange(desc(total)) %.%
  head(5)

Introducing dplyr

R Challenges

• Performance issues
• Not a general purpose language
• Lacks purely UI mode of interaction (e.g. plots must be manually specified)
• Programmer only. There is shiny, but R is first and foremost a language that expects fluency from its users

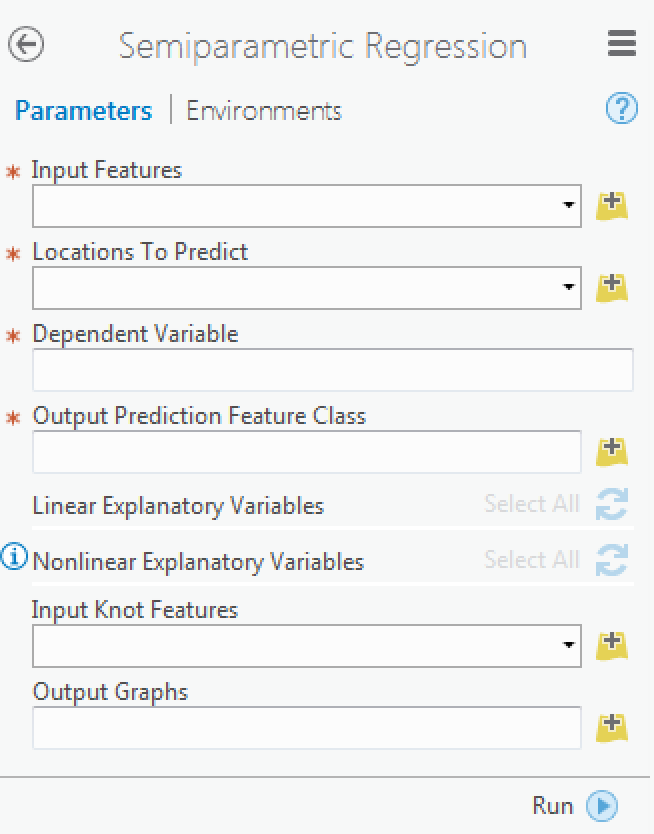

Building R Script Tools

Demo: R-ArcGIS bridge

How To Install

• Install with the R bridge install
• Detailed installation instructions

Where Can I Run This?

Where Can I Run This?

• Now:
  • First, install R 3.1 or later
  • ArcGIS Pro (64-bit) 1.1 or later
  • ArcMap 10.3.1 or later:
    • 32-bit R by default
    • 64-bit R available via Background Geoprocessing
  • ArcGIS Server 10.3.1+ / ArcGIS Enterprise

What’s Next?

• Conda for managing R environments
  • Starting at Pro 2.0, can be installed as any other package
• Raster support

Training Resources

• Learn Lesson: Analyze Crime Using Statistics and the R-ArcGIS bridge

• Web Course 1: Using the R-ArcGIS bridge

• Web Course 2: Integrating R Scripts into ArcGIS Geoprocessing Tools

Other Sessions

• Integrating Open-source Statistical Packages with ArcGIS earlier today, 2016 video
• Harnessing the Power of Python in ArcGIS Using the Conda Distribution yesterday, 2016 video
• Scientific Programming with the SciPy Stack earlier today, 2015 video
• Getting Data Science with R and ArcGIS 2016 video

R

Looking for a package to solve a problem? Use the CRAN Task Views.

Tons of good books and resources on R available, check out the RSeek engine to find resources for the language which can be difficult to locate because of the name.

R Packages by Hadley Wickham

Spatial R / Data Science

• An Introduction to Staistical Learning (PDF) website A free and accessible version of the classic in the field, Elements of Statistical Learning.

• Getting Started in Data Science

ArcGIS + R

• UC Plenary Demo: Statistical Integration with R
  • Demo of SSN: spatial modeling on stream networks
• Cam Plouffe (Esri CA) ran an R ArcGIS Workshop, covers materials in more depth.

Materials

Courses:

• High Performance Scientific Computing
• The Data Scientist’s Toolbox

Books:

• Spatial Statistical Data Analysis for GIS Users Konstantin Krivoruchko (GA creator)
  • Too big to print. Tons of useful stuff, covers both R and ArcGIS extensively.

Packages

Clustering demo covers mclust and sp.

• Tree-based models, e.g. CART
• Time series data, e.g. Little Book of R

R ArcGIS Extensions

• R ArcGIS Bridge
• Marine Geospatial Ecology Tools (MGET)
  • Combines Python, R, and MATLAB to solve a wide variety of problems
• Geospatial Modeling Environment
  • An R flavored language for spatial analysis

Conferences

• useR! Conference
  • useR 2016 is being held July 5-7 in Brussels, Belgium
• Open Data Science Conference (ODSC)
  • Many happening around world, some upcoming ones:
  • ODSC East May 3-5 in Boston
  • ODSC West Nov 2-4 in San Francisco

Outreach

• Resources and outreach – connect the dots, want this to be outreach so we can build up more R + ArcGIS people who aren’t as common as our core language folks.
• Future of the project, questions

Community

• Open source project, different ethos
• Contributions are the currency
  • That said, major uptake in the commercial space:
  • Microsoft R (bought Revolution Analytics); R Studio

Thanks

• R team: Dmitry Pavlushko, Steve Kopp, Mark Janikas; today’s speakers
  • Contact Us
• Geoprocessing Team
